A proper high-end offering for the SQL lovers. This speaker set is capable not only of great detail and sweet reproduction, but can be a proper banger too. An epic setup for the electronic music types where great SQ isn't sacrificed. Digs deep, gentle but can play very loud at the same time with its very high excursion, has earfulls of detail, a very complete combination.

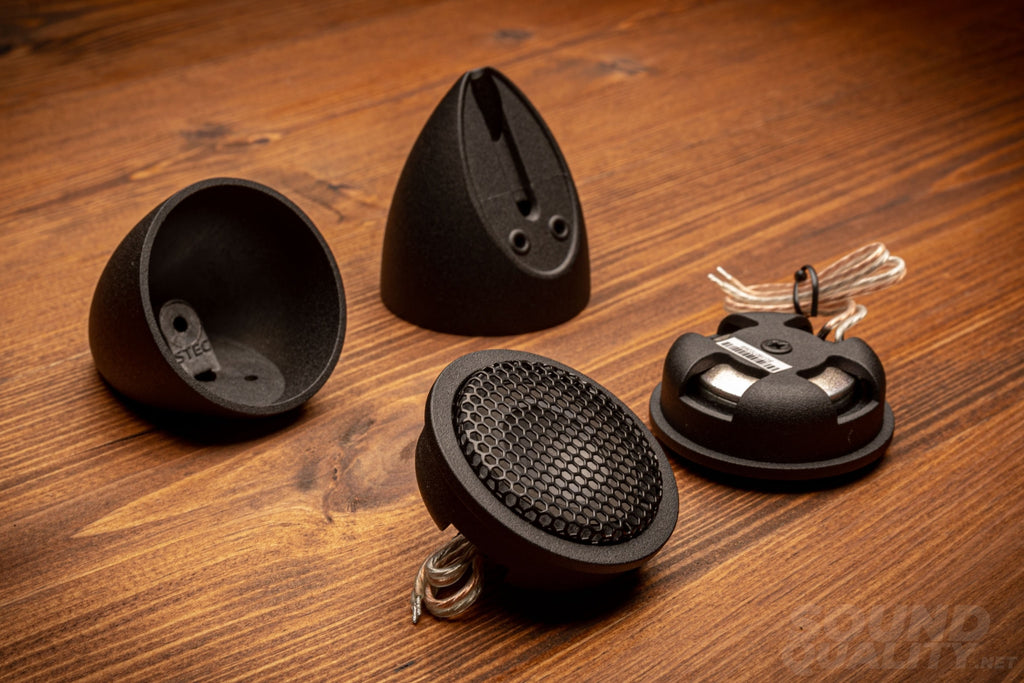

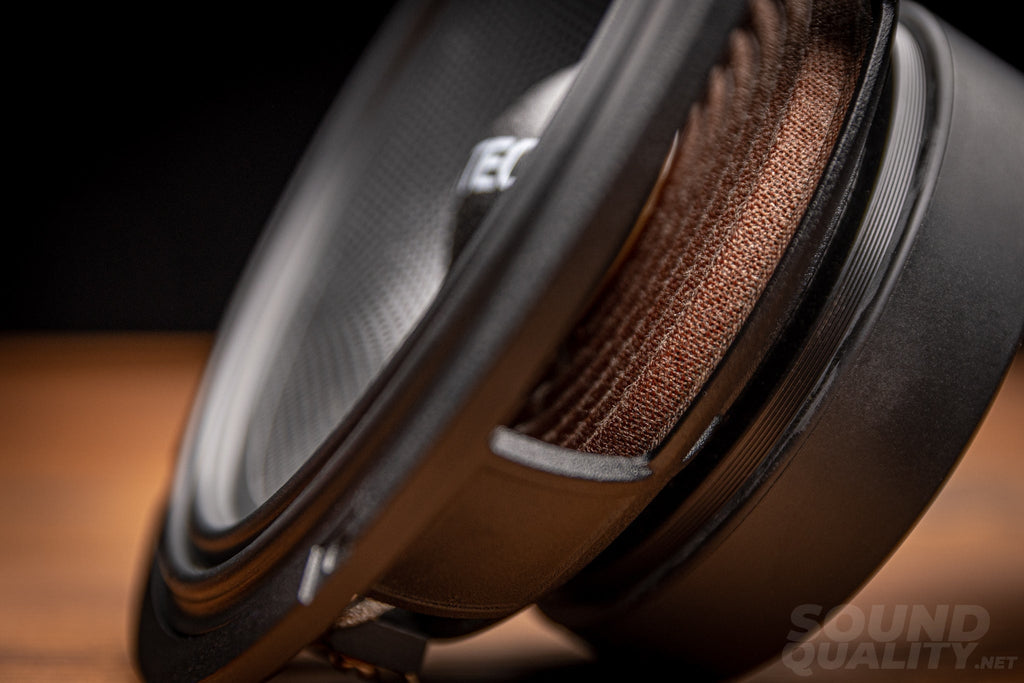

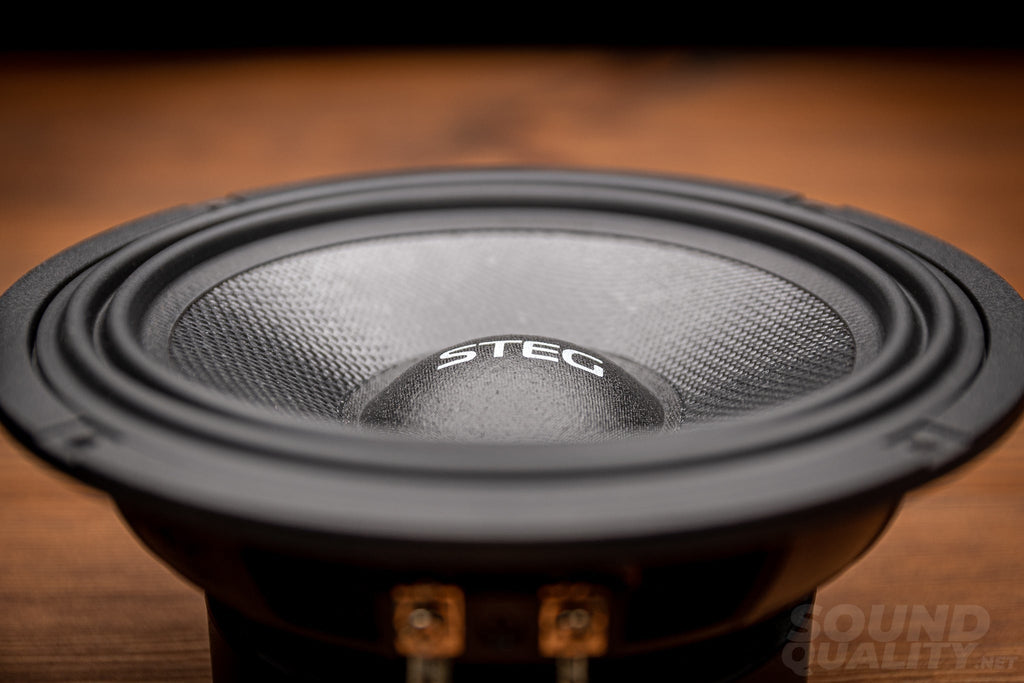

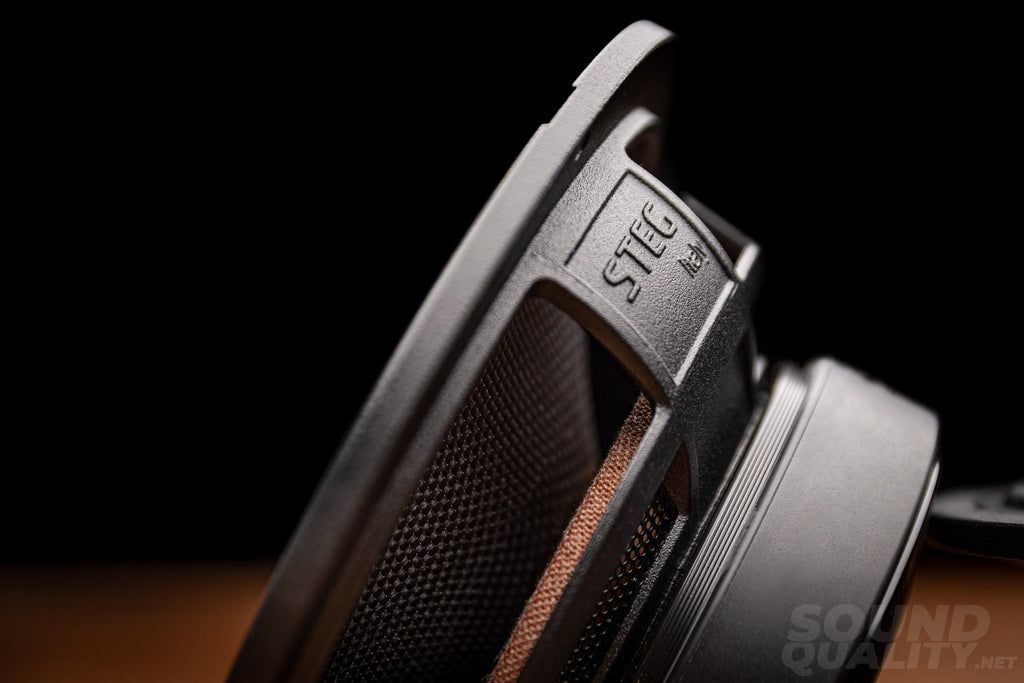

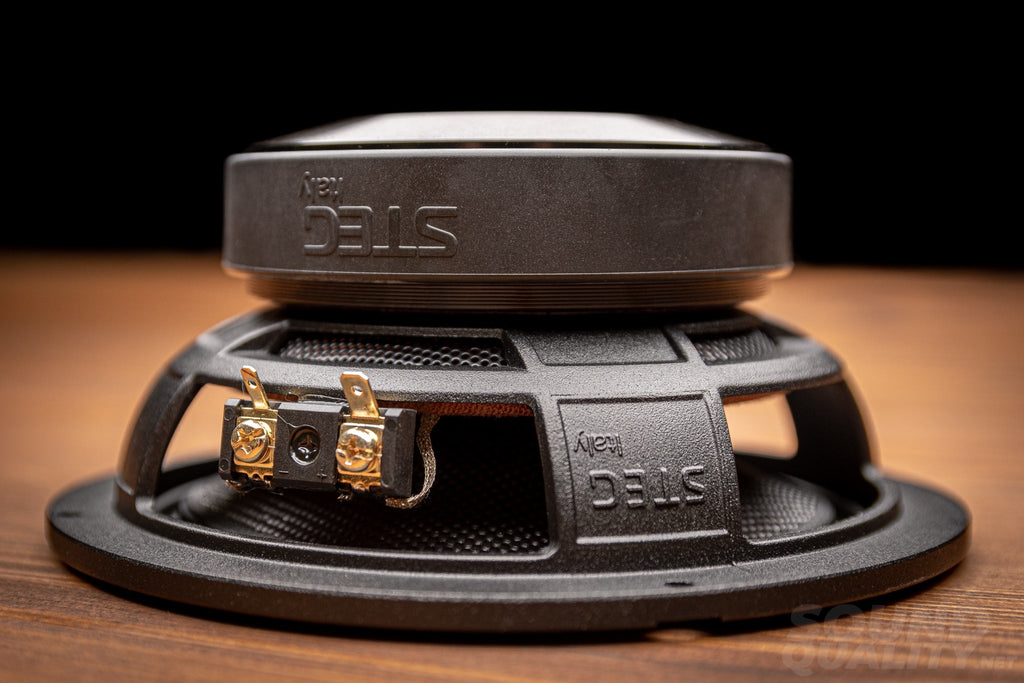

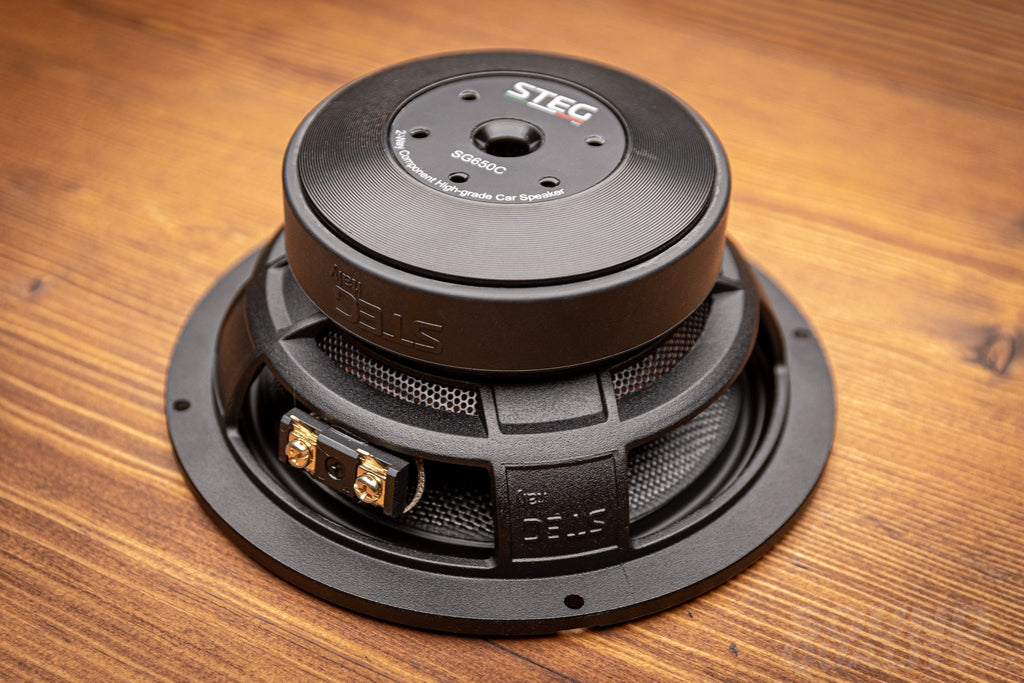

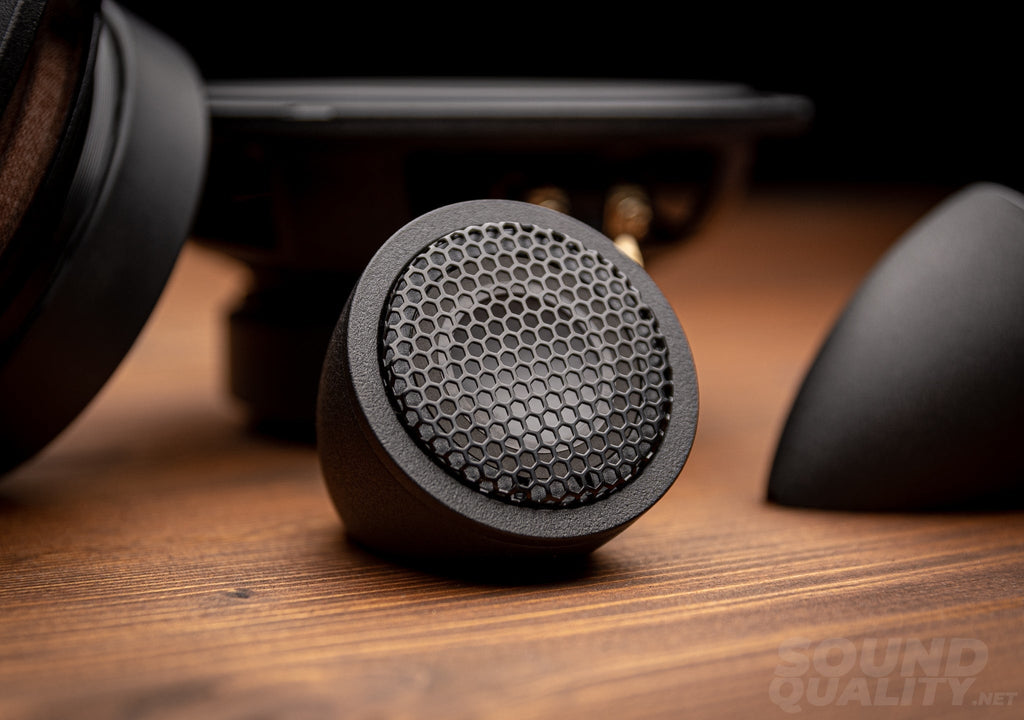

Kevlar-composite cone, double stacked rubber suspension, leads stiched in the spider, double type wire terminals, die-cast aluminum baskets, oversized motor system, PORON tweeters with die-cast aluminum housings, die-cast aluminum angled tweeter pods.
Manufacturer provided specs:
Woofer:
- DC Resistance: 2 Ohm
- Power handling: 50W (massively underrated)
- Frequency response: 45-6000 Hz
- Sensitivity: 89 dB
- Qms: 2.12
- Qes: 0.33
- Qts: 0.28
- Fs: 45 Hz
- Weight: 1.48 kg
- Monting depth: 69 mm
- Mounting diameter: 147 mm
Tweeter:
- DC Resistance: 6 Ohm
- Power handling: 25W
- Frequency response: 1300-25000 Hz
- Fs: 1300 Hz
- Sensitivity: 91 dB
- Weight: 180 g
- Mounting depth: 17 mm
- Mounting diameter: 55 mm
Our own DATS measurements:
Right out of the box, no run-in. Vas of the woofer measured with the added mass method with an 18.5g added weight.
Woofer:
- Re: 1.99 Ohm
- Fs: 54.07 Hz
- Qts: 0.3568
- Qes: 0.4002
- Qms: 3.29
- Le: 0.1493 mH at 10kHz
- BL: 5.646
- Cms: 0.459 mm/N
- Mms: 18.87 g
- Vas: 11.71 L
- Sensitivity: 94.59 dB 2.83Vrms
Tweeter:
- Re: 5.375 Ohm
- Fs: 1414 Hz
- Qts: 0.9901
- Qes: 1.779
- Qms: 2.233
- Le: 0.01977 mH at 10kHz

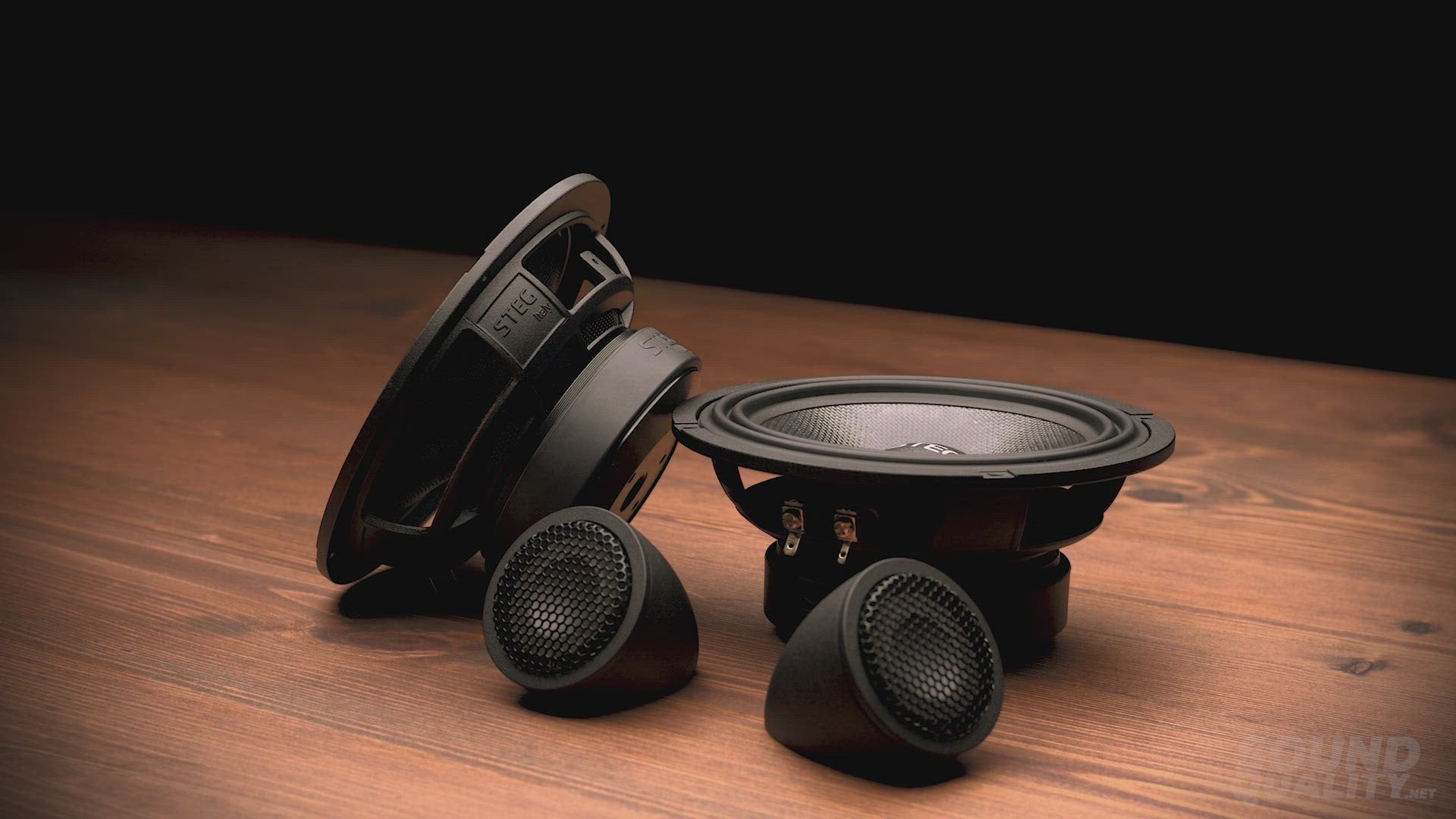

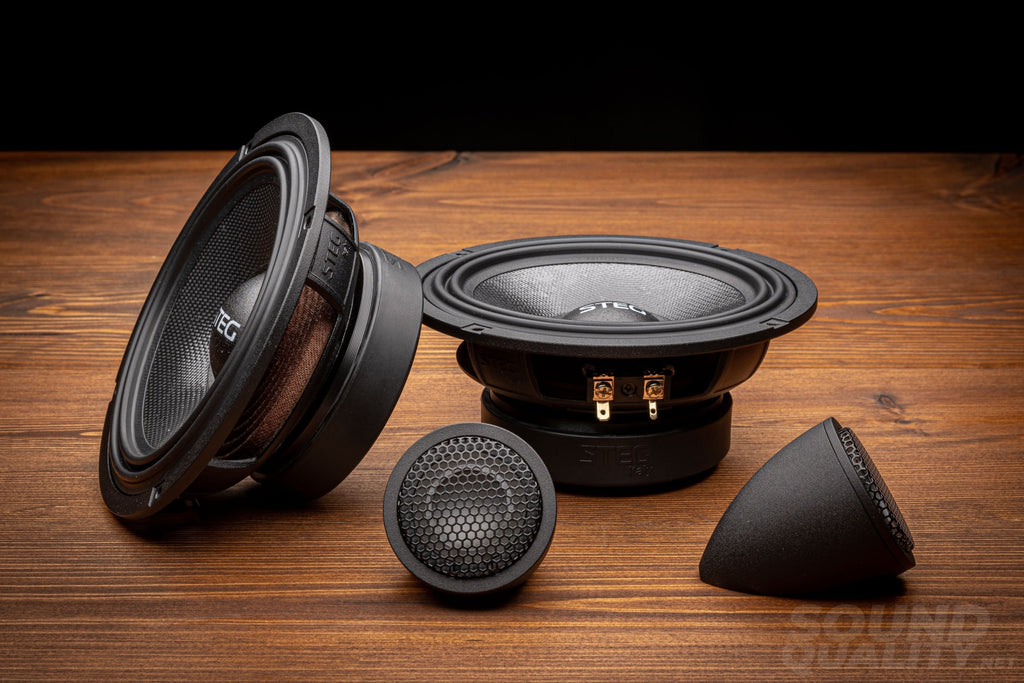

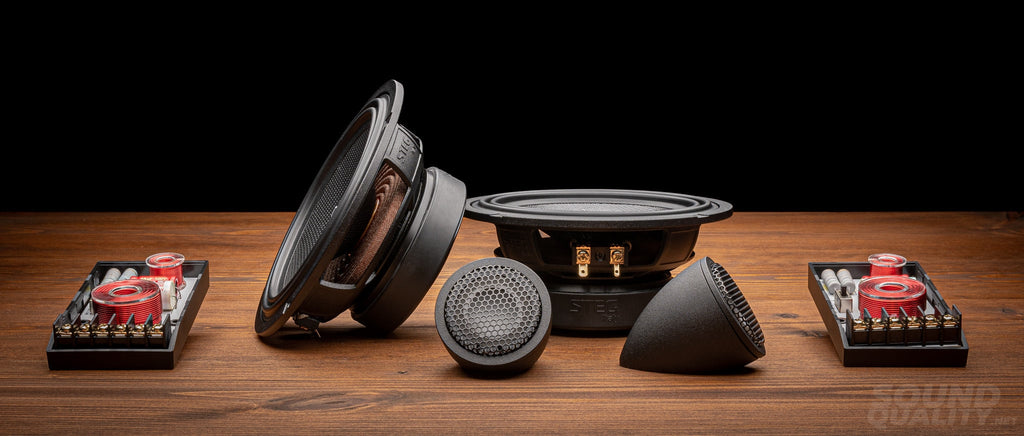

What's included:
- 2x Woofers
- 2x Tweeters

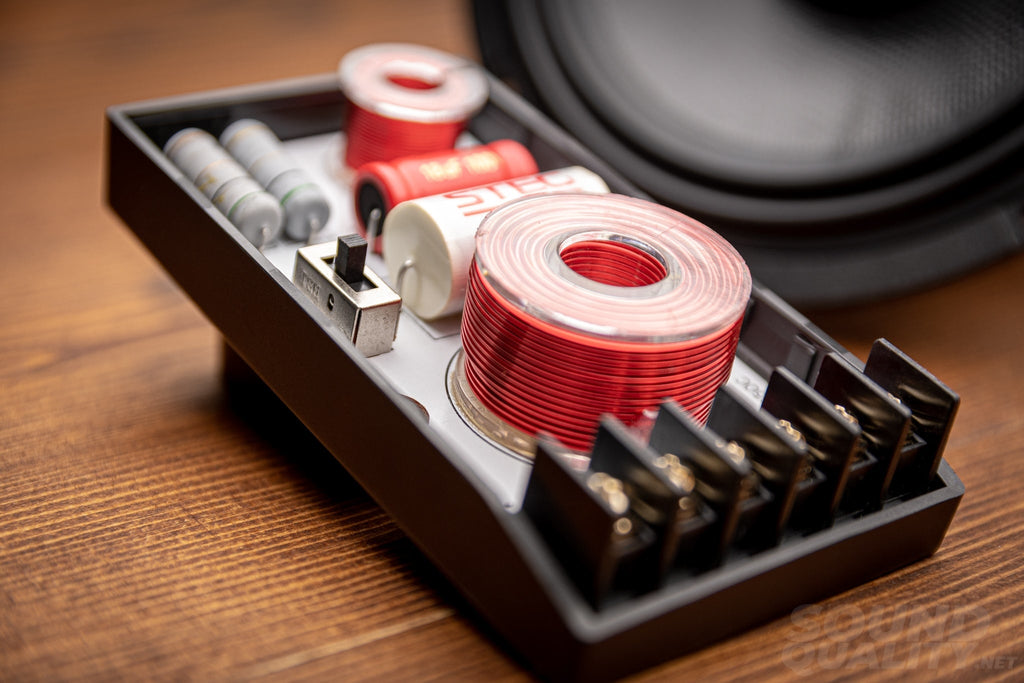

- 2x Crossovers
- 2x Aluminum tweeter pods
